Skip to contentIR Laser Pointer
- Wavelength: 808±5 nm
- Peak Power ≥ 0.5 Watt
- Beam Divergence ≤ 1 mRd @ 70% Power.
- Operating Voltage: 5 – 12 VDC
- Exit Aperture: 10 mm
- LOS accuracy relative to mounting surface ≤ 1.0 mRad @ each axis
- Beam alignment travel range ± 2.5 mRad @ each axis.
- LASER Safety: Class4 per Safety of LASER Products.
- Qualified for airborne systems.

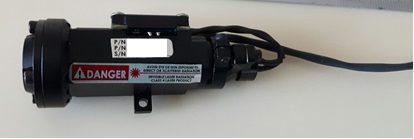

![IR Laser Pointer](https://www.sdsystems-il.com/wp-content/uploads/2022/05/IR-Laser-Pointer-1-300x101.jpg)
Description
- Wavelength: 808±5 nm
- Peak Power ≥ 0.5 Watt
- Beam Divergence ≤ 1 mRd @ 70% Power.
- Operating Voltage: 5 – 12 VDC
- Exit Aperture: 10 mm
- LOS accuracy relative to mounting surface ≤ 1.0 mRad @ each axis
- Beam alignment travel range ± 2.5 mRad @ each axis.
- LASER Safety: Class4 per Safety of LASER Products.
- Qualified for airborne systems.
